Horizon, BQ-470
- Reference No.: 41481
- Manufacturer:Horizon
- Type:BQ-470
- Year:2008

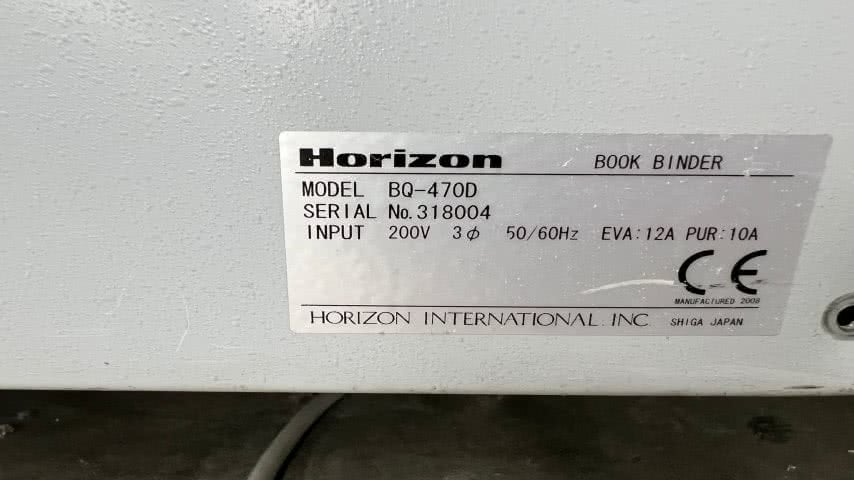

- Serial No.: 318004
- Size:320 x 320 mm

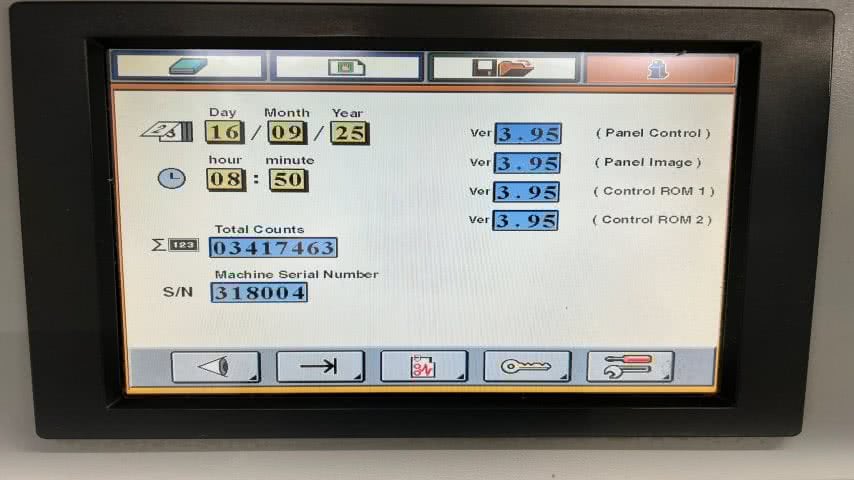

- Units produced :3417463 Units
- Status:In Printshop
- Location:Germany
- Price:on request
- Incoterm: FCA

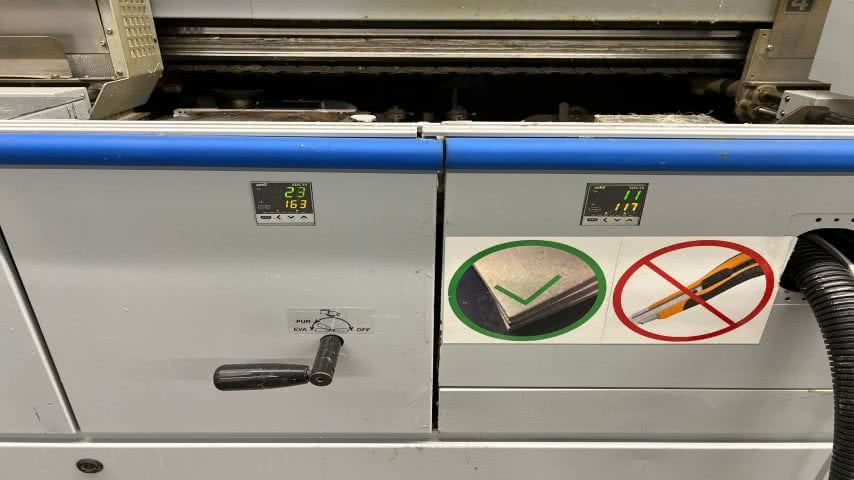

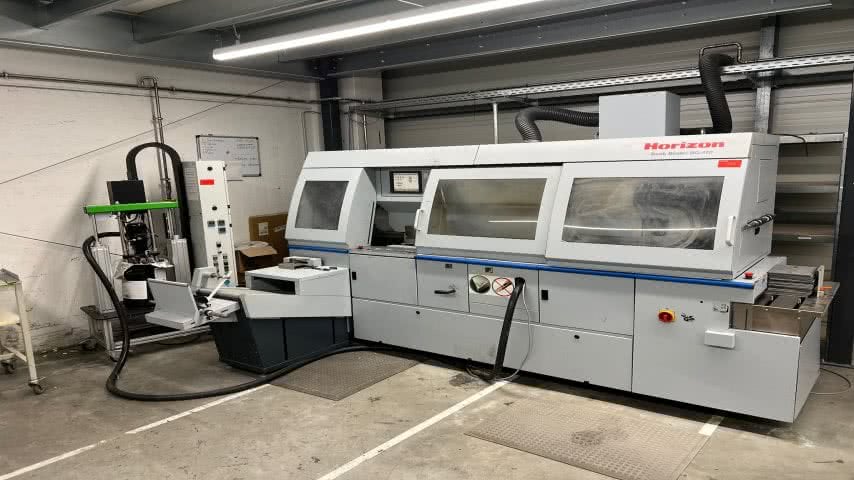

- The Horizon BQ-470, manufactured in 2008 with serial number 318004, is a four-clamp perfect binder designed for professional book production. With a maximum book format of 320 x 320 mm and a thickness range from 1 to 65 mm, it offers flexibility for a wide variety of binding applications. Currently located in a printshop in Germany, the machine combines automation, precision, and reliability to deliver consistent results. This binder is equipped with EVA hotmelt side gluing and a PUR glue plant, allowing the use of both EVA and PUR adhesives. The heating system is adjustable from 100 to 200 °C, with adhesive temperatures of 120 °C for EVA and up to 130 °C for PUR. The machine requires a 400 V power connection, with a consumption of 4.8 kW for the binder and 4.4 kW for the melt unit, and operates with a compressed air supply of 6 bar. Performance highlights include a maximum output of 1,000 cycles per hour, a heating time of approximately 50 minutes, and an envelope feeder with suction drum capable of handling a loading capacity of 150 mm. It supports cover sizes from 135 x 225 mm up to 320 x 660 mm, with cover thicknesses ranging from 90 g/m² to 300 g/m². Additional features include 4-way positive/negative creasing (with optional 2-way creasing) and robust construction with a total weight of 2,170 kg plus 150 kg for the melt unit. The Horizon BQ-470 remains a proven solution for industrial print and finishing operations, offering high productivity, versatility, and professional binding quality.
- Fully Automated 4-Clamp Perfect Binder
- Book size: Max 320x320 mm - Min 145x105 mm
- Cover size: Max 320x660 mm - Min 135x225 mm
- Book Thickness: 0,3 to 65 mm

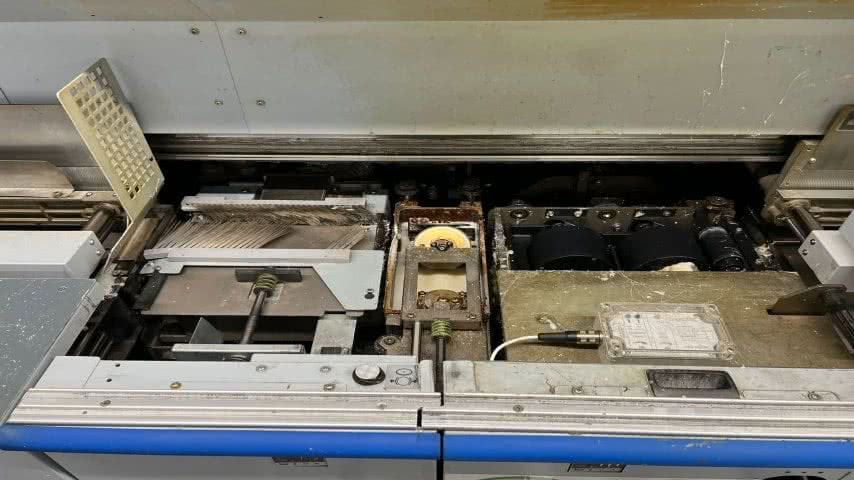

- Milling depth adjustment from 0 to 4 mm
- Speed: 1,350 books per hour
- Color Touchscreen panel
- End-to-end Automated Set-up

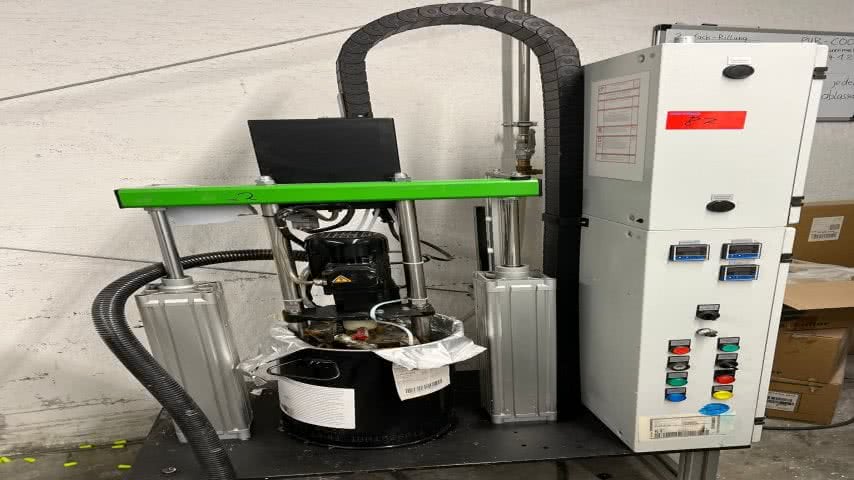

- PUR Tank Horizon MU-470PUR

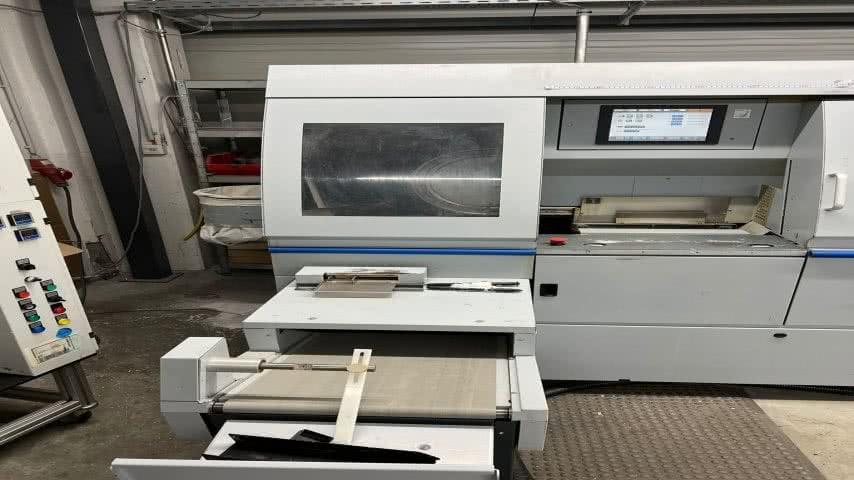

- Cover Feeder Suction
- 4 Clamps
- Lateral side Glue

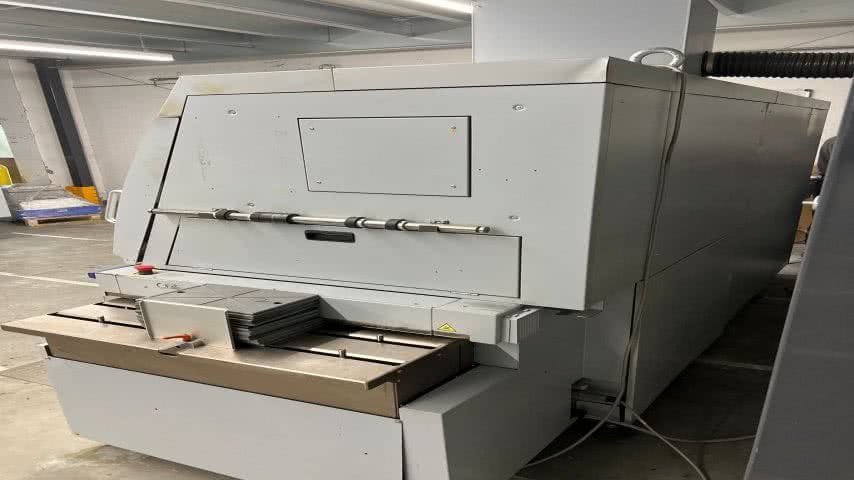

- Delivery Conveyor
- PUR Glue unit
- Including: Transformer, Manuals, Tools and accessories
