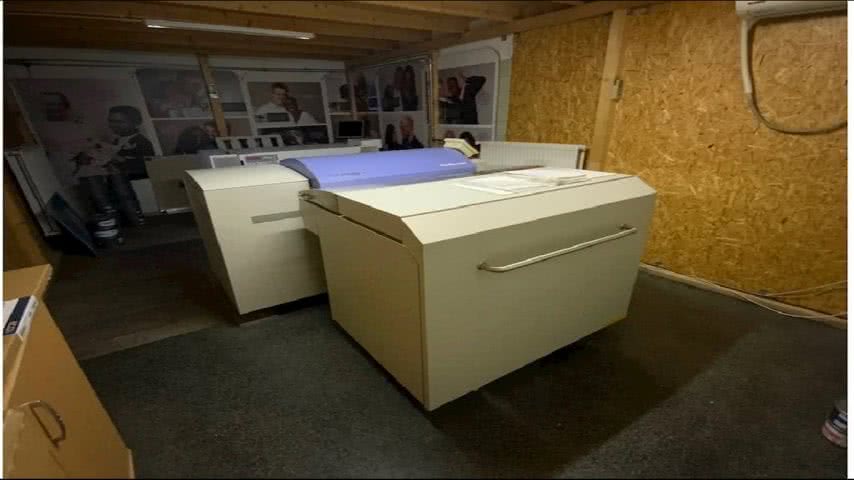

SCREEN, PT-R 4300
- Reference No.: 39138
- Manufacturer:SCREEN
- Type:PT-R 4300
- Year:2006
- Size:660 x 830 mm
- Status:Stock
- Location:Germany
- Price:on request
- Incoterm: FCA
- The Screen PT-R 4300, manufactured in 2006, is a high-performance Computer-to-Plate (CTP) system designed for efficient and precise plate imaging. With a format of 660 x 830 mm, this machine is currently available in stock and located in Germany. The delivery terms are FCA (Free Carrier), meaning the seller delivers the goods, cleared for export, to the carrier appointed by the buyer. The PT-R 4300 supports a plate format ranging from a maximum of 830 x 660 mm to a minimum of 324 x 370 mm. It operates with a power supply of 200-240V at 50/60 Hz and is equipped with a computer control system and MPS68. Utilizing thermal CTP technology, this system can handle plate thicknesses from 0.15 mm to 0.30 mm and offers a high resolution of 2,400 dpi with 32 diodes. Key features include a speed of up to 21 plates per hour at 2,400 dpi and an automatic plate feeder with a ONE-TH-85 plate developer. The system also includes a cassette loader and operates within an environmental temperature range of 18-24°C. Weighing approximately 1,000 kg, the Screen PT-R 4300 is a robust and reliable solution for high-quality plate imaging in various printing applications.
- 32 DIODS
- Cassette loader
- ONE TH 85 plate developer
- Computercontrol System
- MPS68
- Typ: Computer-to-Plate (CTP) System
- Modell: PTR 4300
- Exposure technology: Thermal CTP system
- Plate format: Maximum 830 x 660 mm, Minimum 324 x 370 mm
- Resolution: 2.400 dpi
- Plate thickness: 0.15 mm to 0.30 mm
- Speed: Up to 21 plates per hour (at 2,400 dpi)
- Equipment: Automatic plate feeding with ONE-TH-85
- Power supply: 200-240V, 50/60 Hz
- weight ca. 1.000 kg
- Ambient temperature: 18-24 °C
