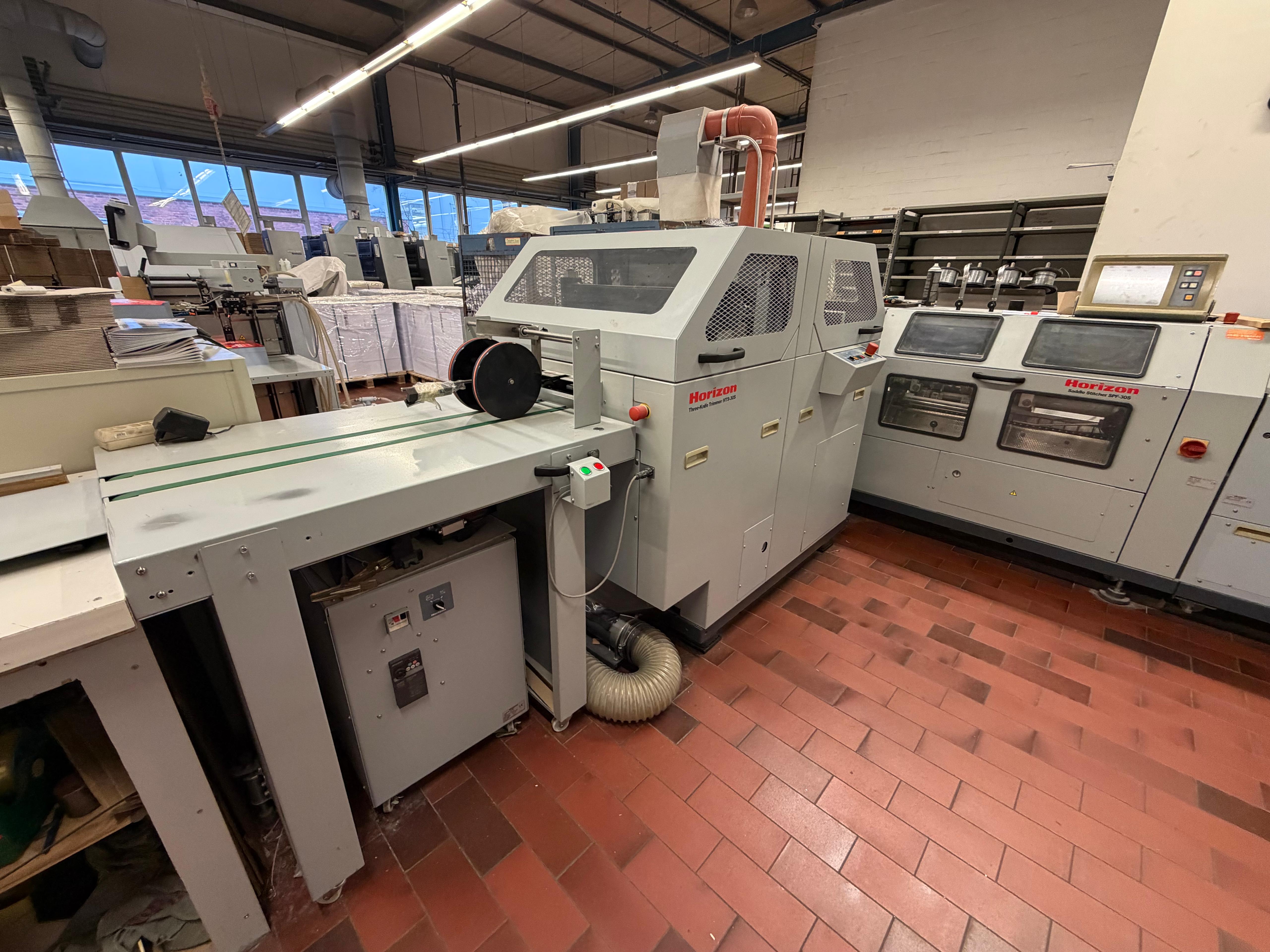

Horizon, Stichliner 5500

General Data:

Whatsapp

Description:

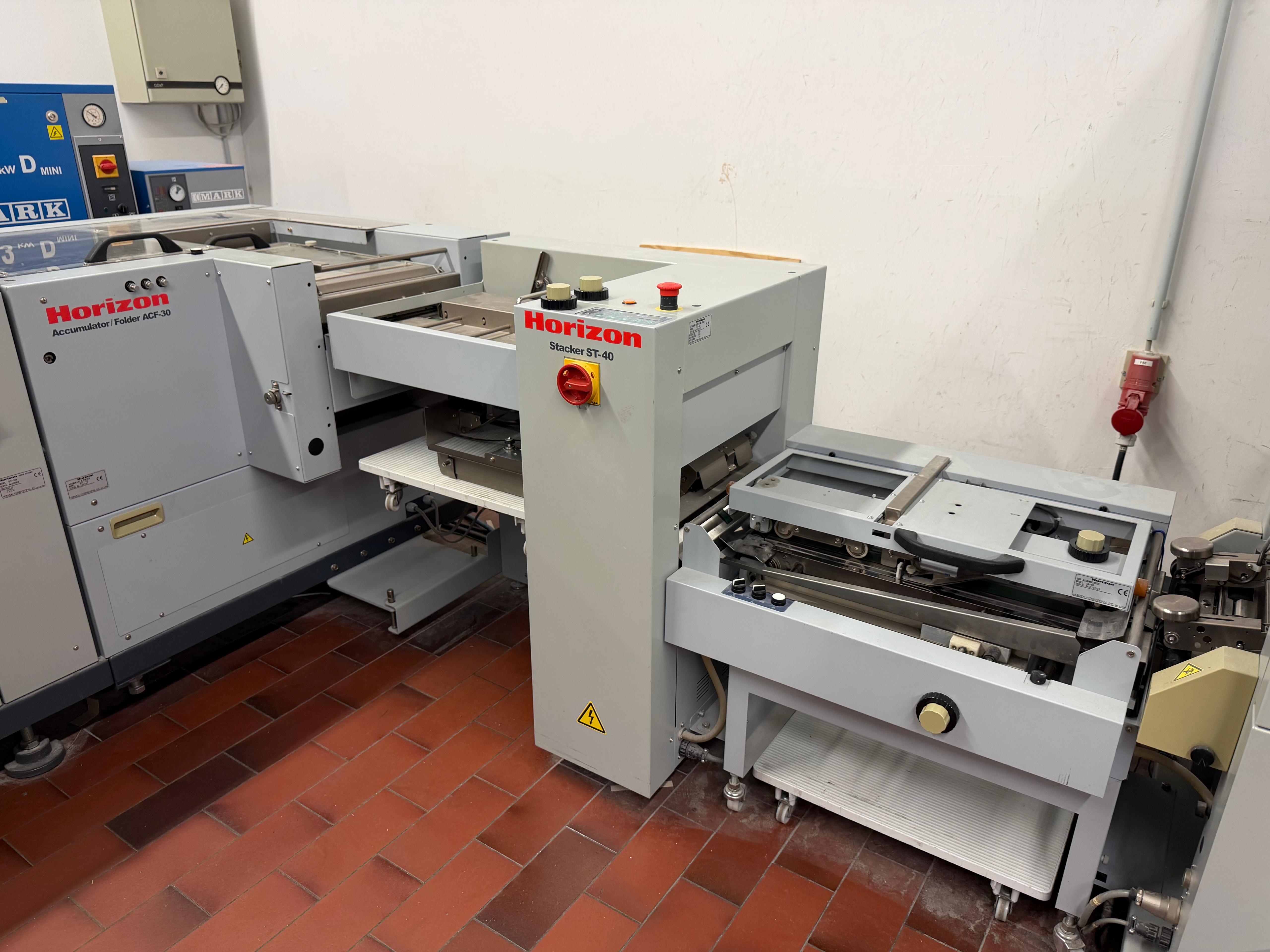

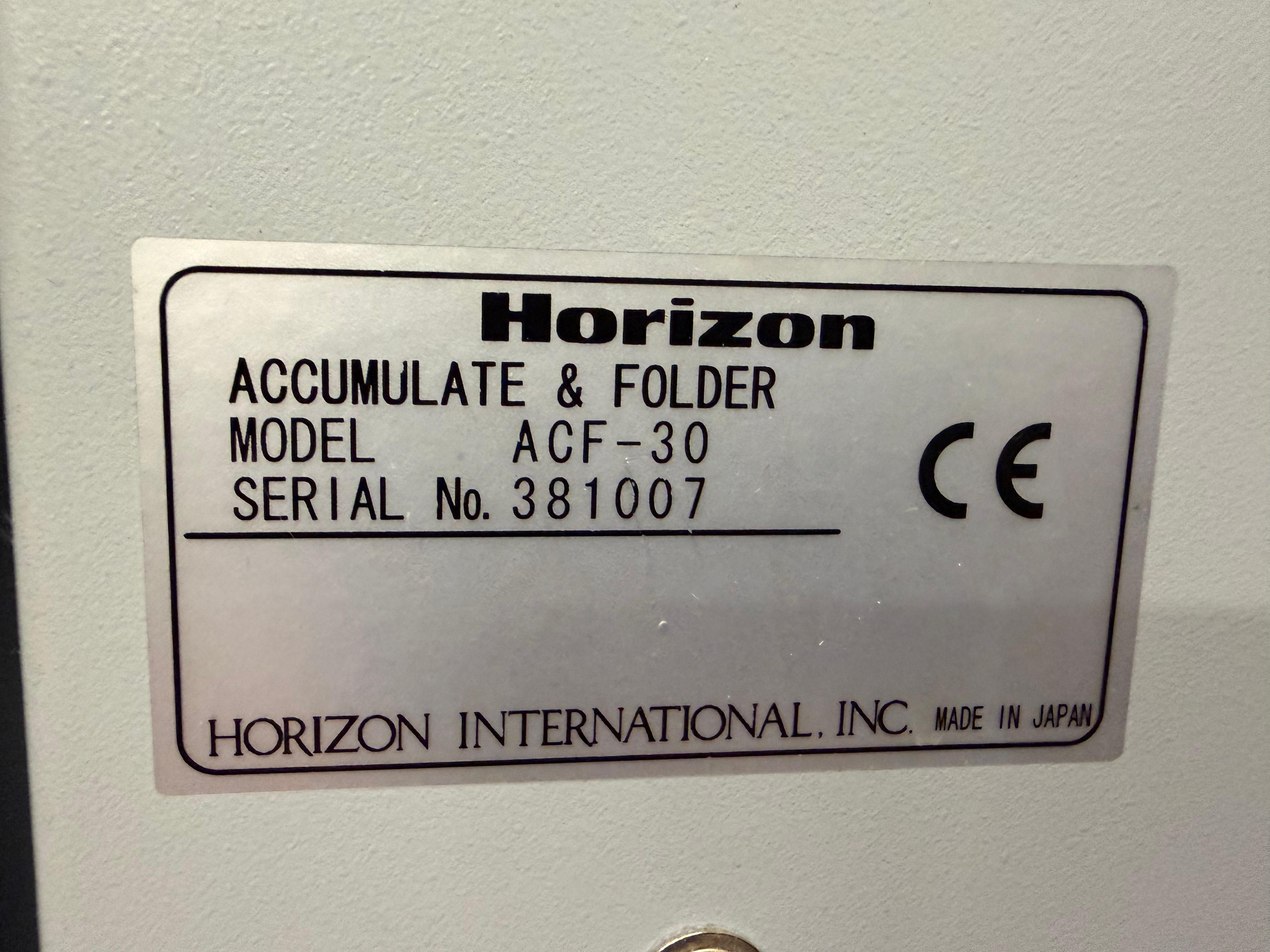

• Accumulate & Folder ACF-30

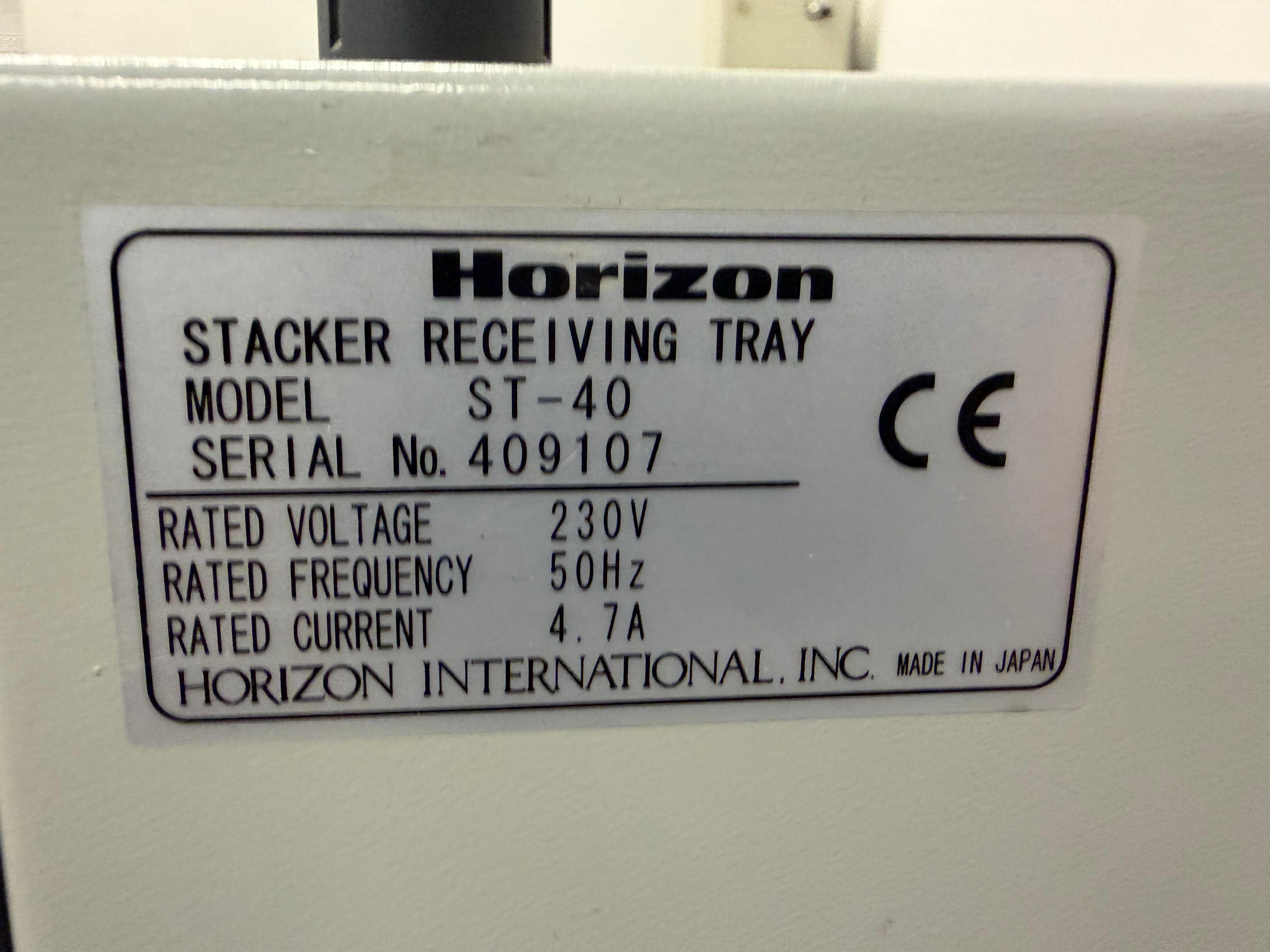

• Stacker ST-40

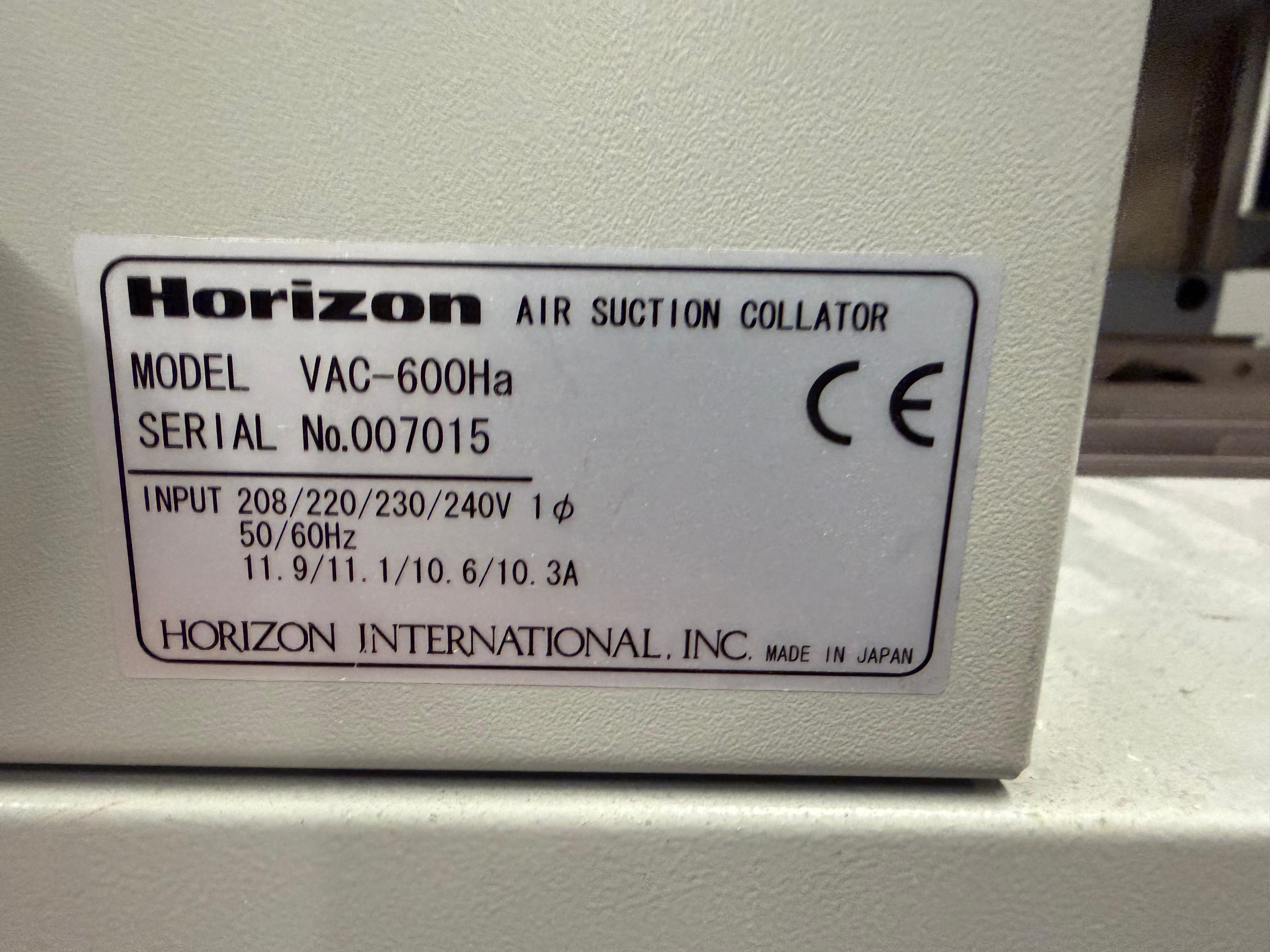

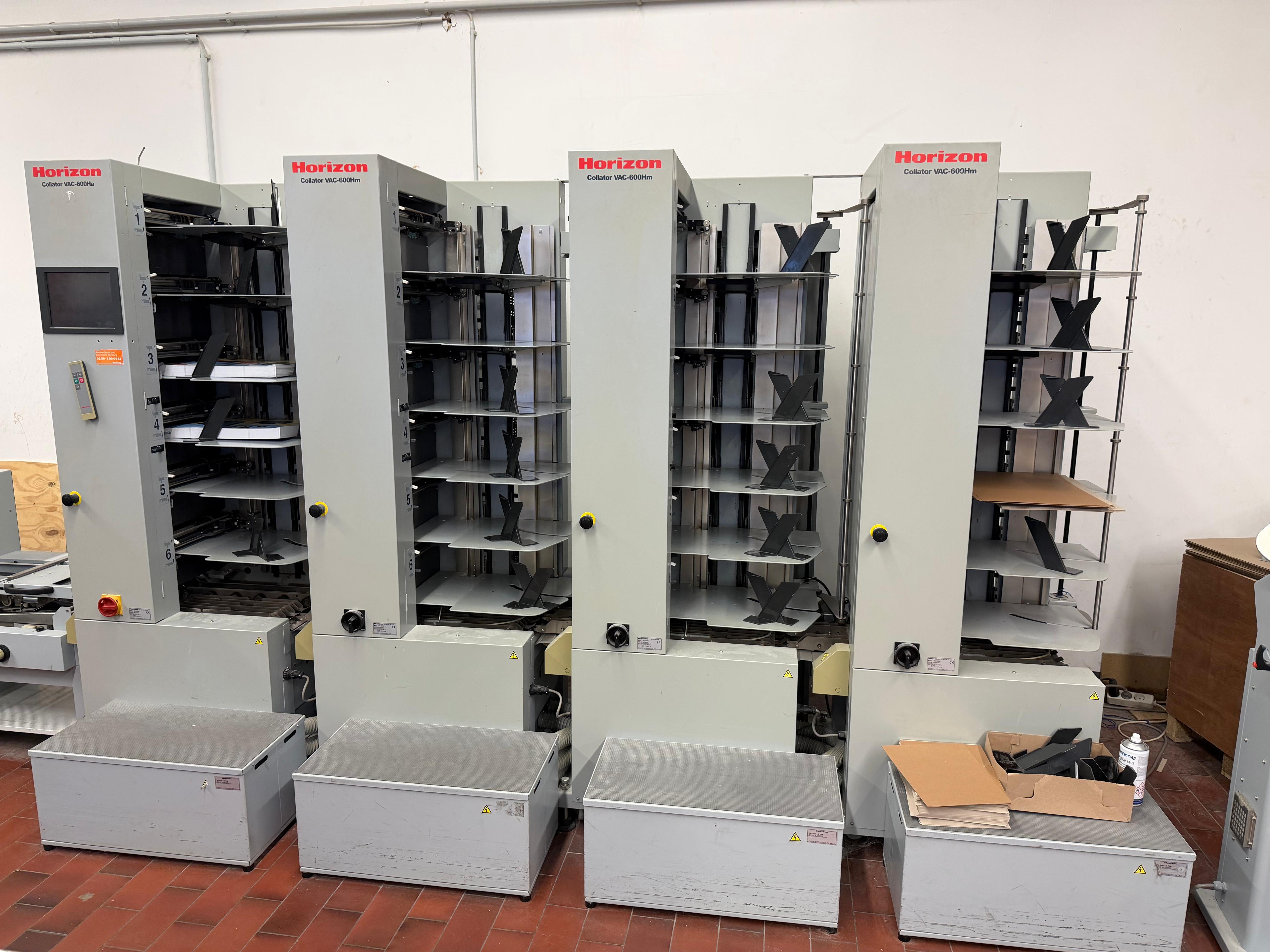

• 1x VAC-600 Ha 3x VAC-600 Hm

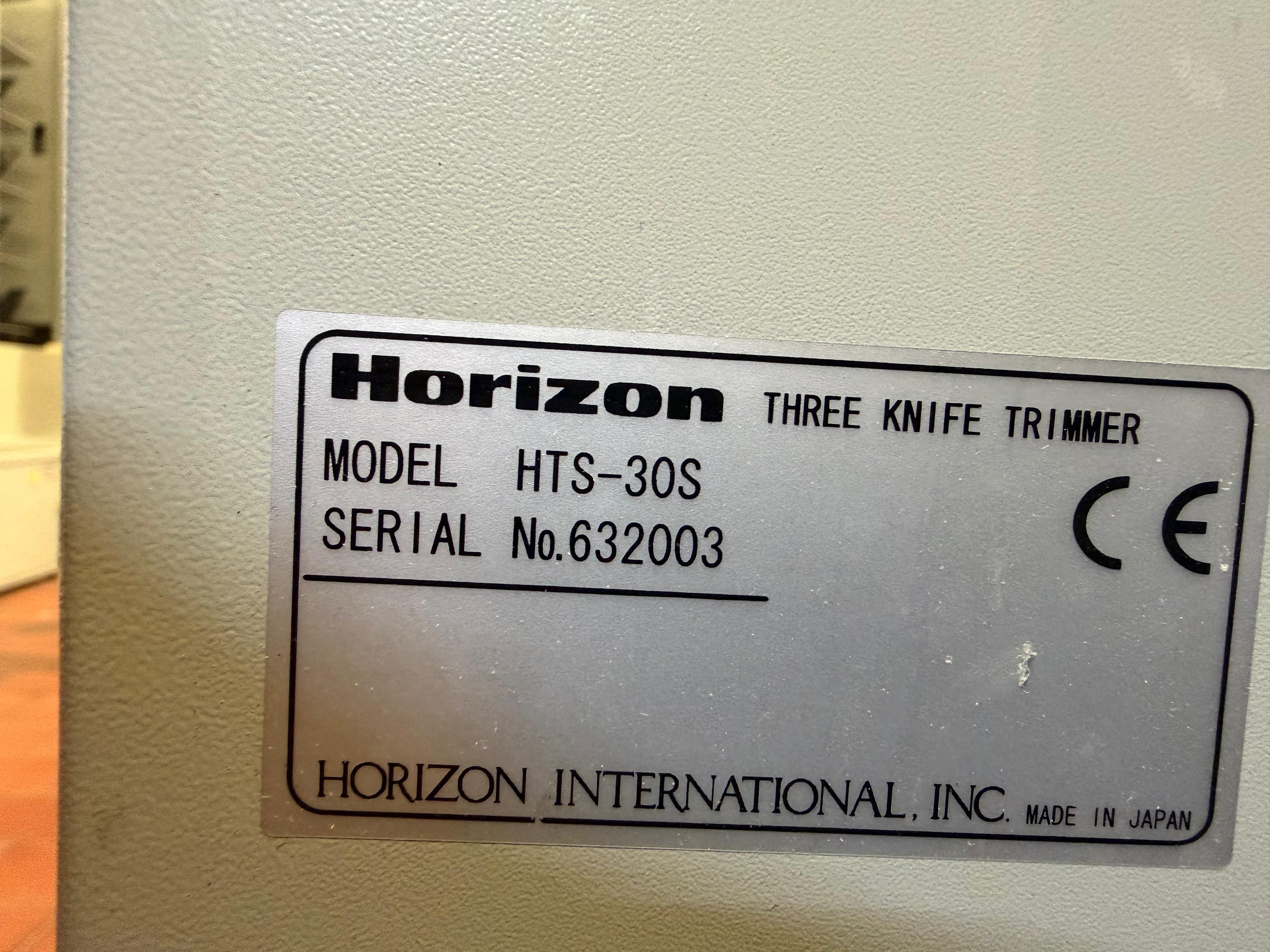

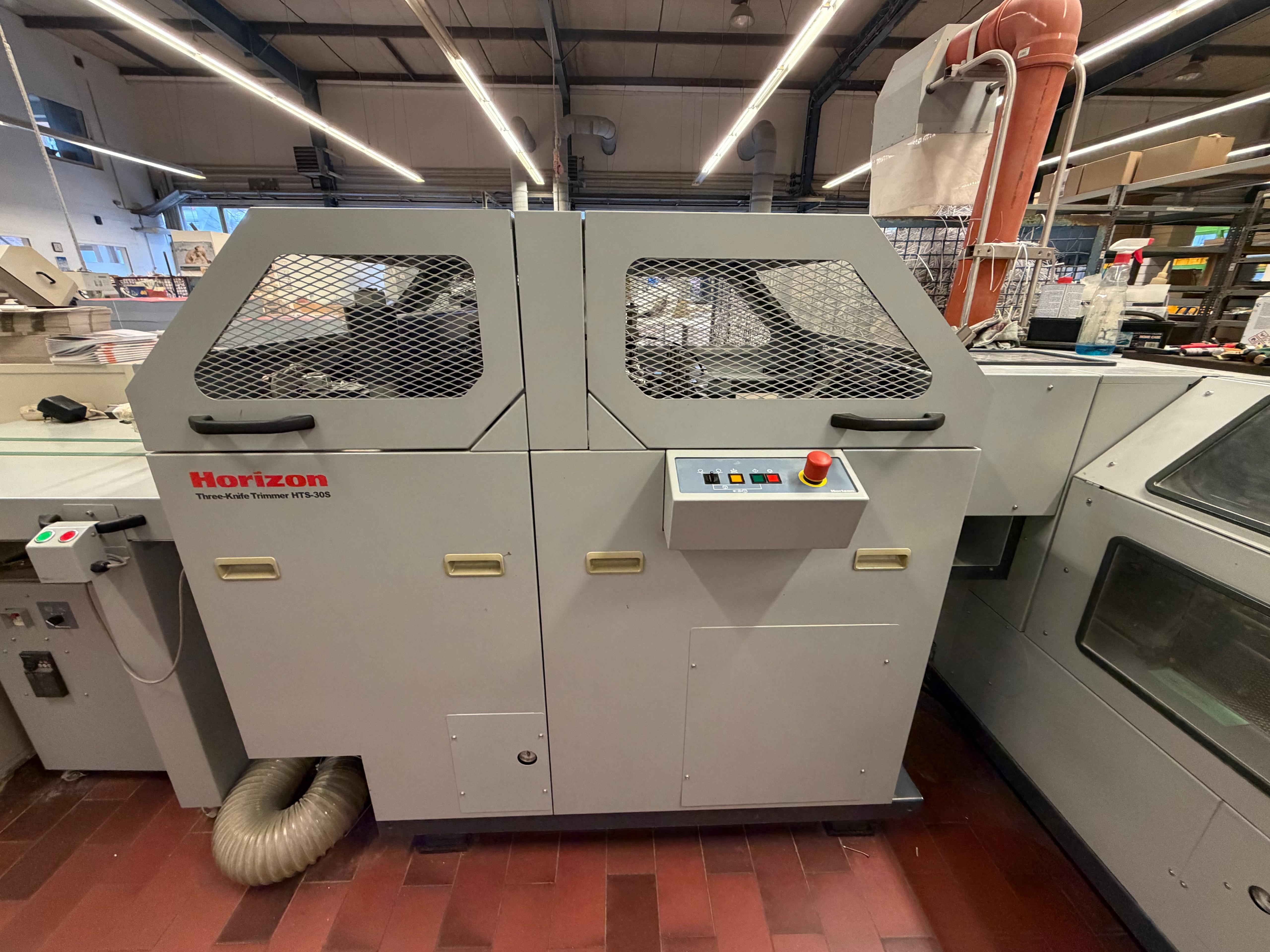

• Three knife trimmer HTS-30S

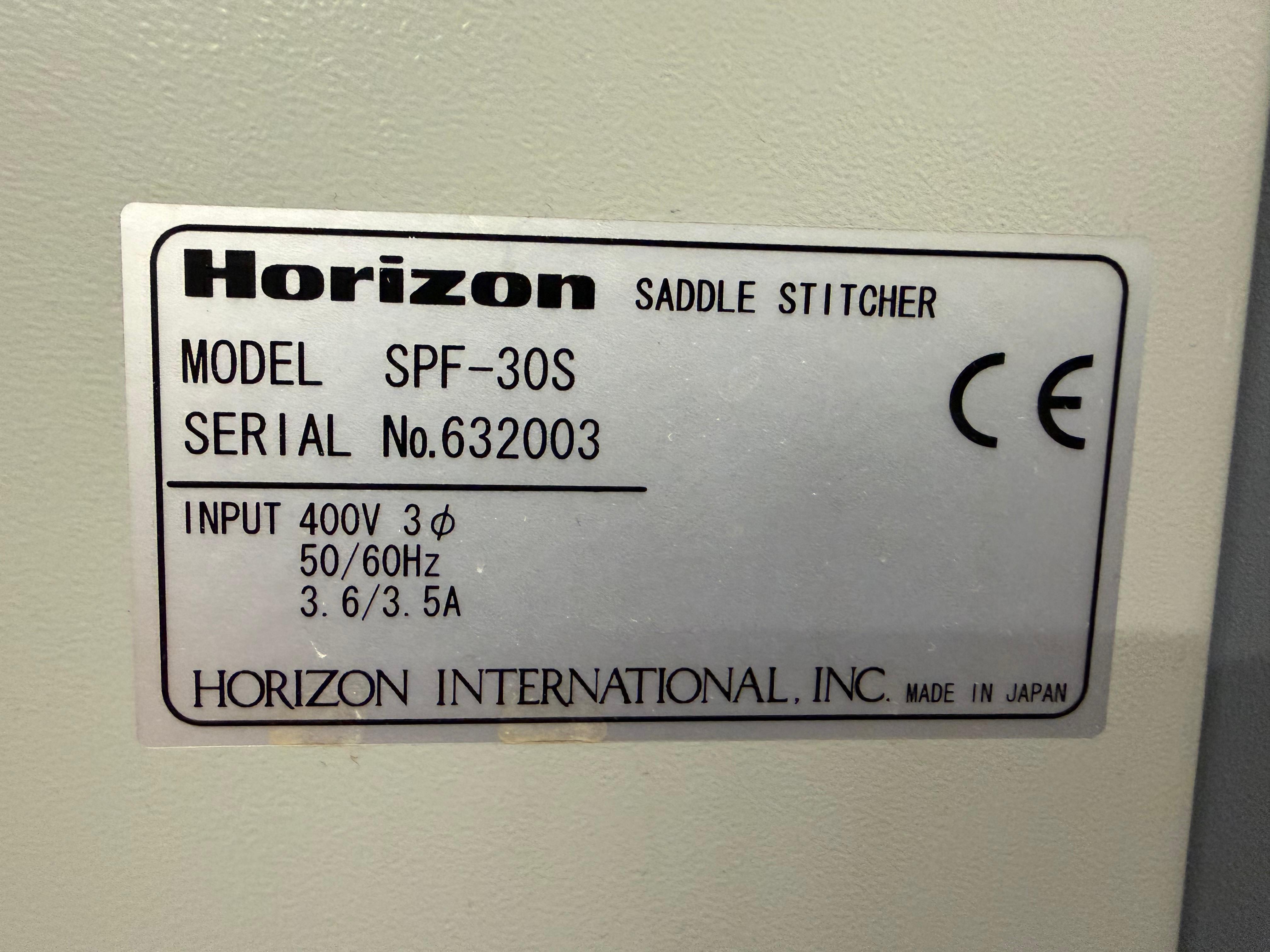

• Saddle stitcher SPF-30S
• 24 stations
• U-shaped layout: Efficient space utilization and easy monitoring
• Inline production from collating to finished product
• Variable data processing: Handles personalized prints and variable page counts, ideal for digital printing
• Fully automatic format adjustment for quick job changes

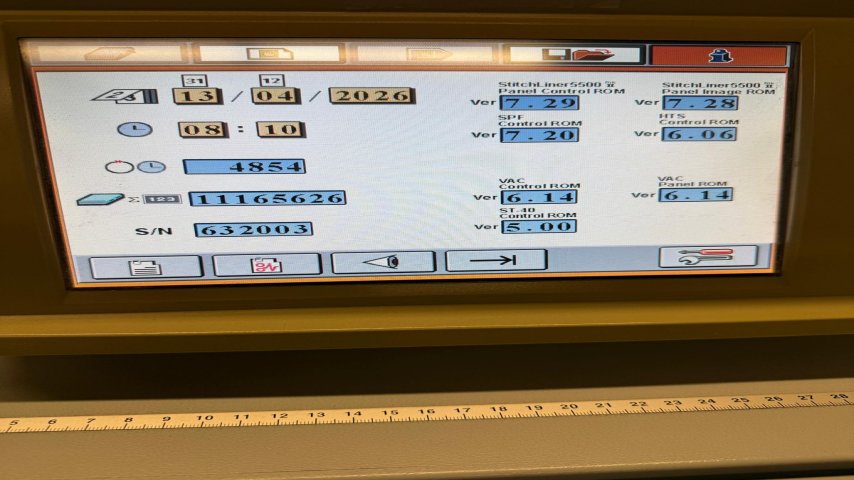

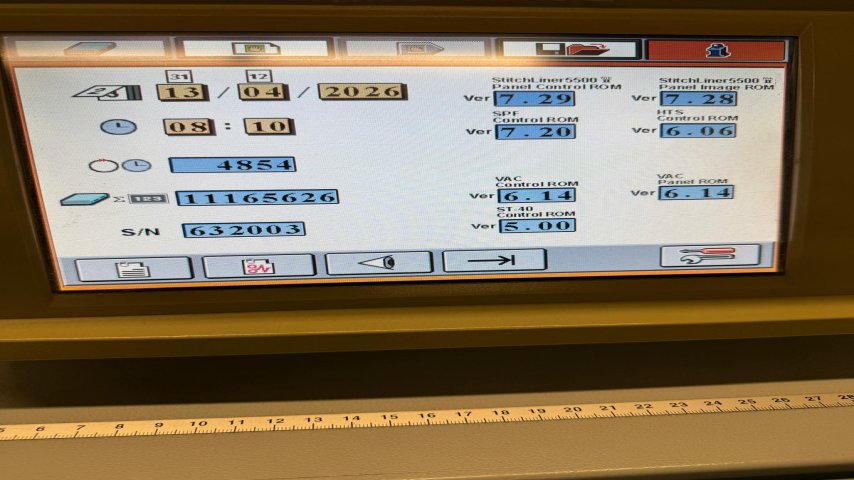

• Touchscreen for user-friendly operation, even for less experienced operators
• Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm
• Paper weight: 40-350 gsm
• Processing thickness: 8-200 pages (max. 5 mm spine thickness)
• Production speed: Up to 5,500 booklets/hour
• Stitch distance: 60-150 mm
• Trimming (untrimmed): Max. 350 x 250 mm, Min. 140 x 103 mm
• Trimming (trimmed): Max. 312 x 230 mm, Min. 120 x 95 mm
• Power supply: 400V / 50Hz
• Space requirement: Min. 5,709 x 3,240 mm
