More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• roller adjustment: fully automatic
• model: flat pile feeder with air-suction
• type of fold: single fold, parallel fold, short fold, letter fold, according fold, gate fold
• sheet size: max. 310x432mm; min. 125x130mm
• paper weight: 50-190g/sqm
• pile height: 50mm
• speed: max. 240 sheets/min.
• power: 230V/50Hz - 0,6kW
• dimensions: 1.060x553x670mm
• weight: 45kg

More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• Feeder
• Feeder Mode: Flat pile feeder
• Max. pile height: 740 mm
• Folding Units
• 1st unit
• Type: AFC-566 FKT
• Pockets: 6
• Pocket Type: Combi folding plates
• Pocket Configuration: manual
• Rollers Configuration: manual
• Roller condition: used condition
• Working width max: 558 mm
• Fold length max: 850 mm
• Cross fold unit with 1x knife
• Noise Protection Hood
• Touch Screen Control
• Delivery
• Delivery mode: PST-40
• Type: Press delivery
• Year: 2010
• Serial number: 360003
• Working width max: 440 mm
• Technical Details
• Sheet size max: 440 x 310 mm
• Sheet size min: 60 x 64 mm
• Infeed height min: 280 mm
• Mechanical speed max: 240 m/min
• Pressing force: 20,000 N
• Built-in controller
• Technical details:
• Sheet size max: 558 x 850 mm
• Sheet size min: 128 x 148 mm
• Max. mechanical speed: 240 m/min
• Max. mechanical speed (cycles): 30,000 cycles/h

Product description:
The Horizon AFC 566 FKT + PST-40 folding machine, manufactured in 2016, is a high-performance solution for efficient and precise folding operations. Currently in production and located in Germany, this machine is designed to handle a wide range of sheet sizes, from a minimum of 60 x 64 mm to a maximum of 558 x 850 mm, with a maximum mechanical speed of 240 m/min (30,000 cycles/h). Equipped with a flat pile feeder capable of handling a maximum pile height of 740 mm, it ensures continuous and efficient paper feeding. The primary folding unit is an AFC-566 FKT with 6 combi folding plates, offering manual pocket and roller configuration. It features a used condition roller and a cross fold unit with 1 knife, providing versatile folding options with a maximum working width of 558 mm and a maximum fold length of 850 mm. The machine also includes a noise protection hood and touch screen control for ease of operation. The delivery mode is a PST-40 press delivery, manufactured in 2010 with the serial number 360003. It has a maximum working width of 440 mm and a pressing force of 20,000 N, ensuring efficient and organized output handling. This machine is well-suited for businesses seeking to enhance their folding capabilities with a reliable and high-performance solution.

More Details
Status : Dismantled
Location : Germany
Incoterm: FCA
Description:

• 2 parallel fold
• 1 cross fold
• Sheet width: max: 500mm,min: 105mm,
• Cross folding: max: 500mm, min: 182mm,
• Perforation: max: 500mm, min: 105mm, sheet length: max. 648mm, min.174mm.
• Speed max. 180 m/min., suction head w ith a rotary feeder

Product description:

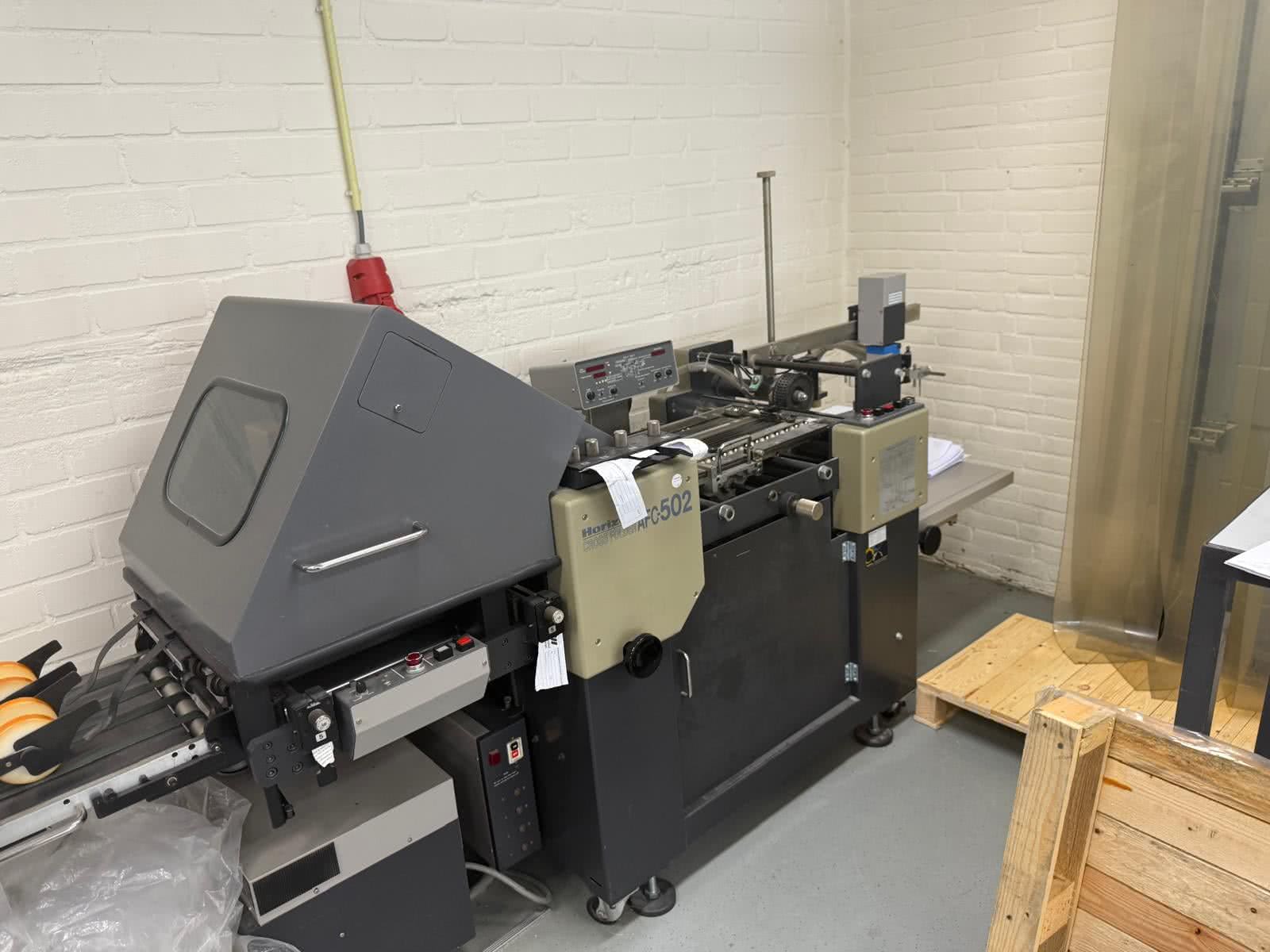

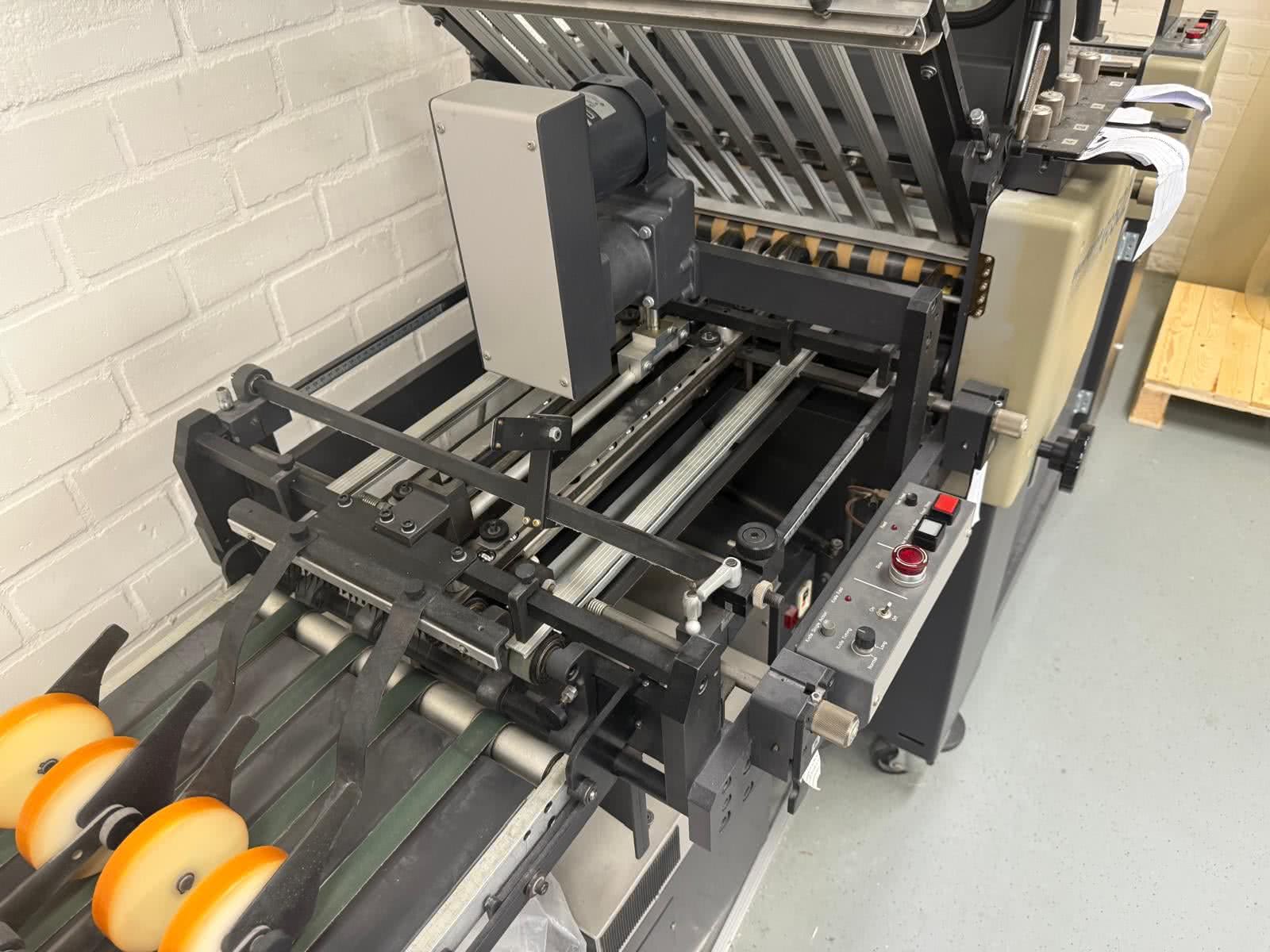

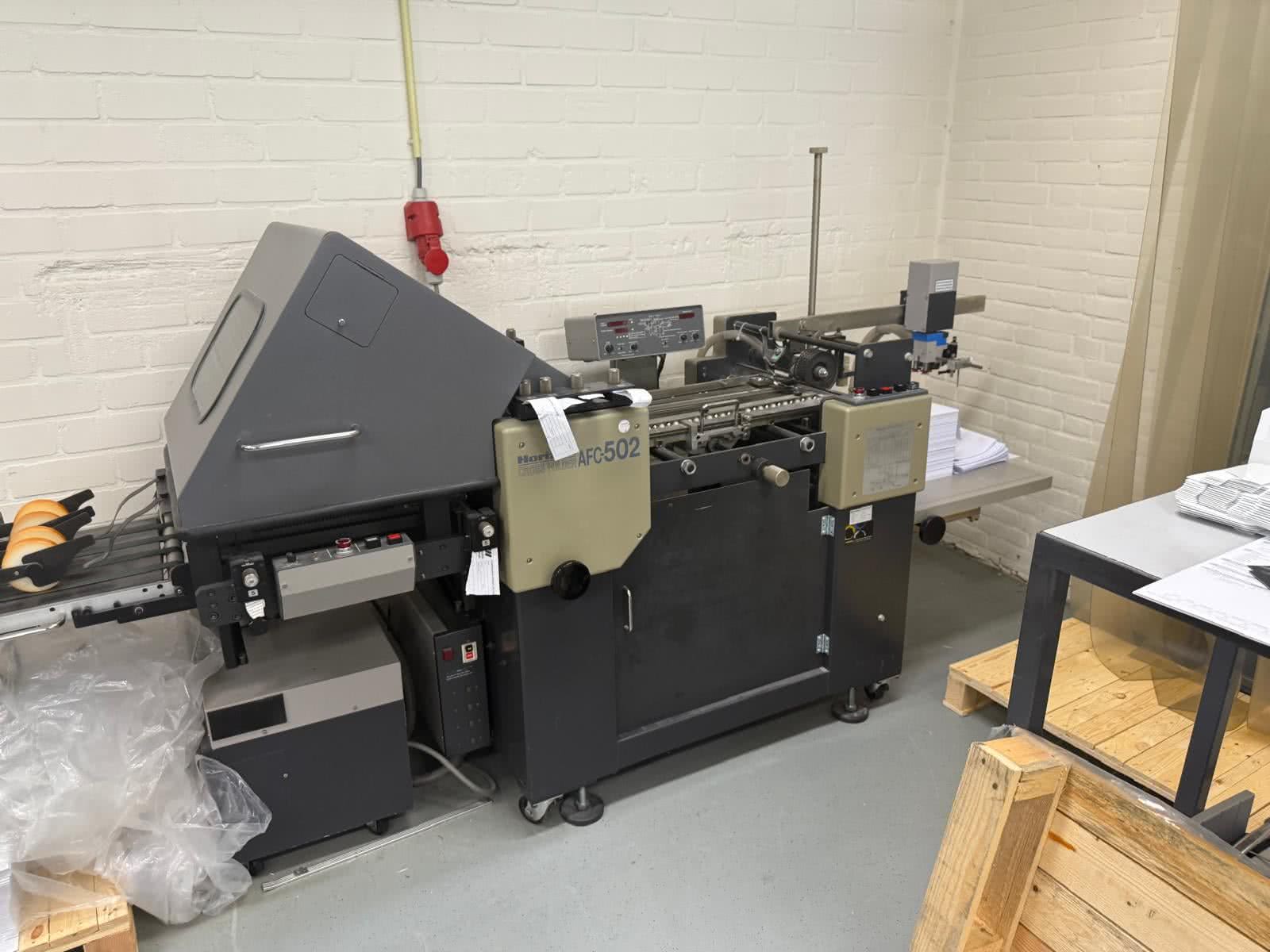

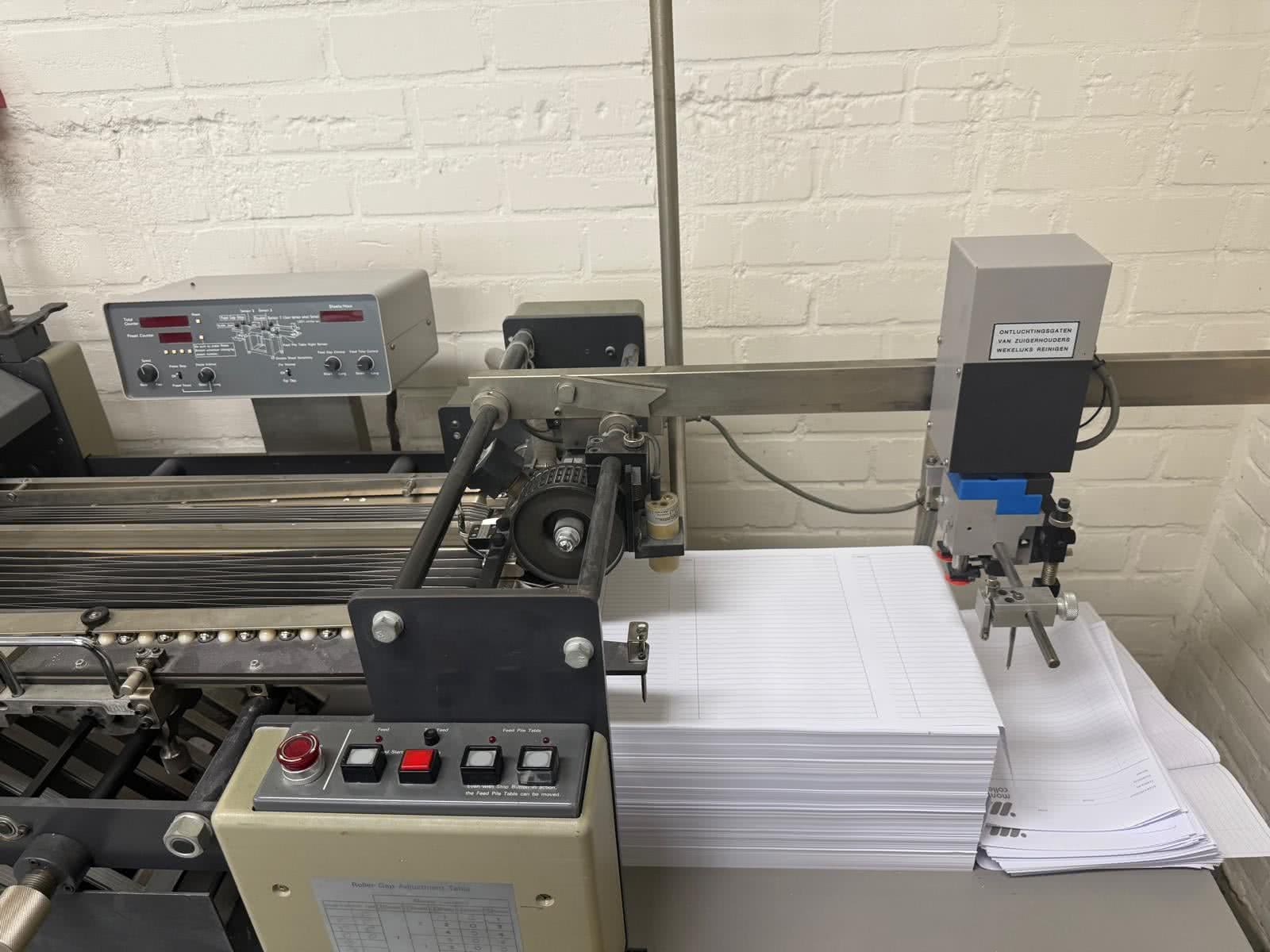

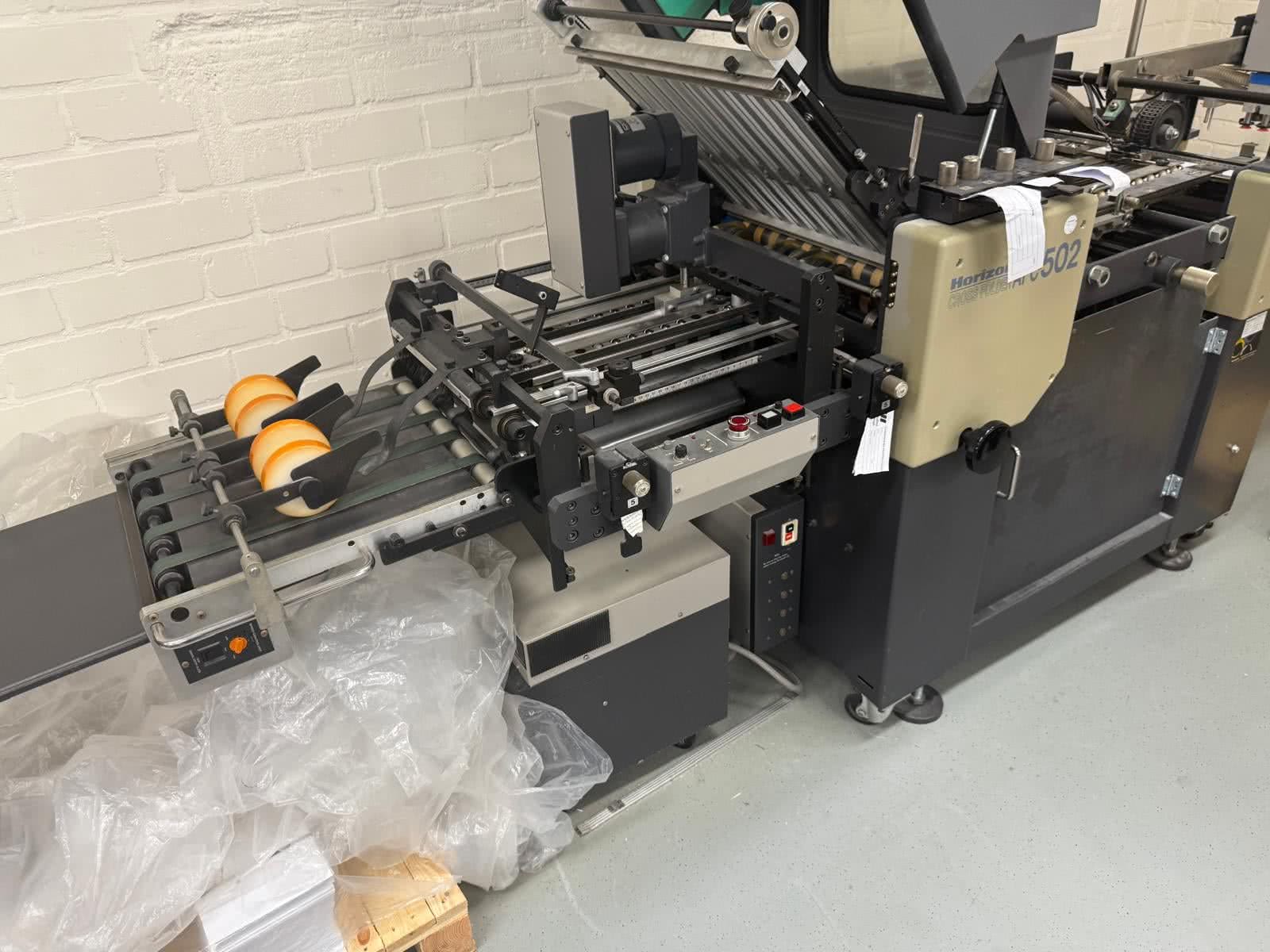

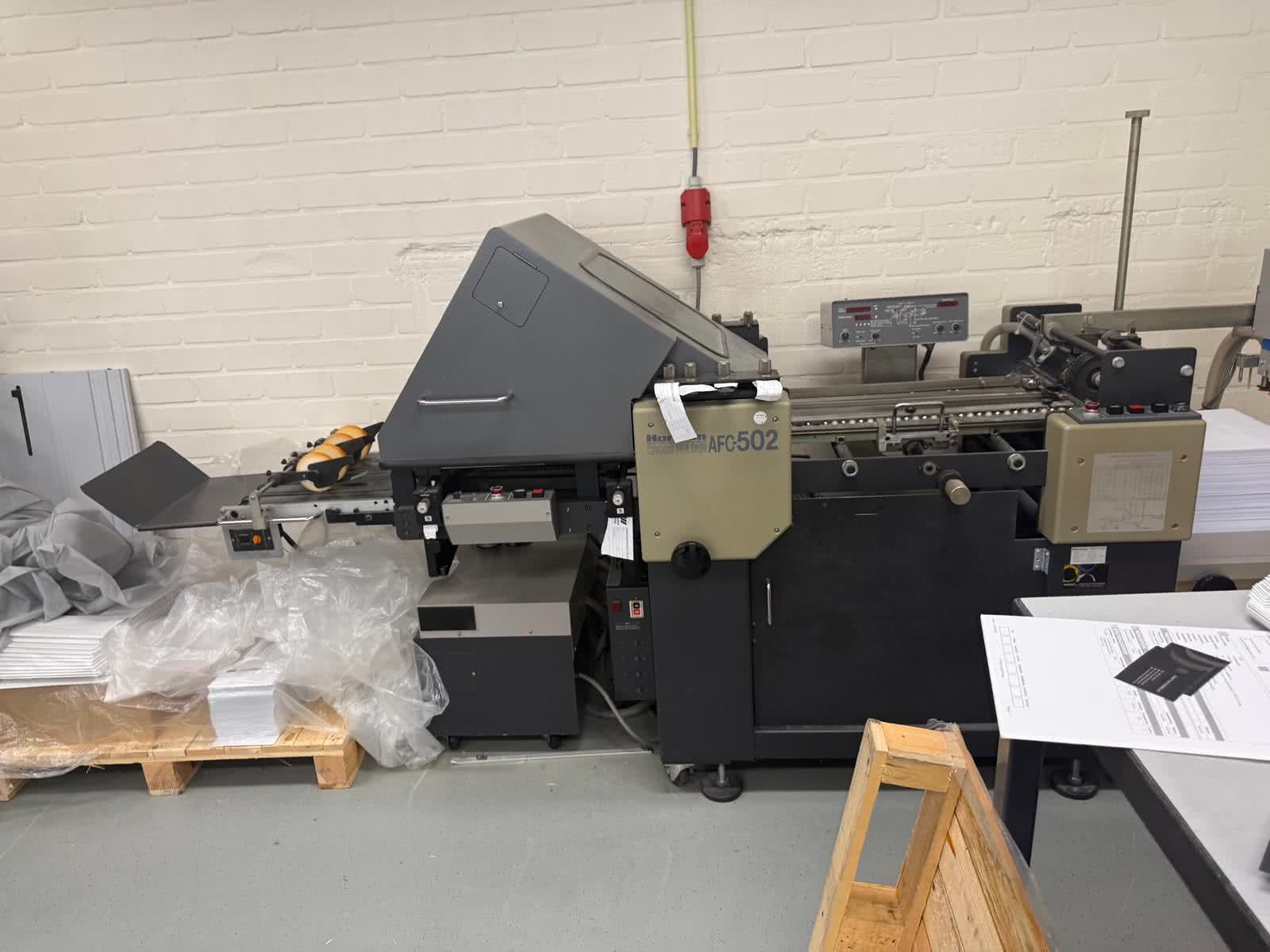

The Horizon AFC-502 folding machine, serial number 23027, is a versatile solution for professional folding applications. Currently dismantled and located in Germany, it is designed to handle a wide range of formats with precision and efficiency. This model offers 2 parallel folds and 1 cross fold, supported by a suction head with rotary feeder for smooth and reliable sheet handling. It accommodates sheet widths up to 500 mm (minimum 105 mm) and lengths up to 648 mm (minimum 174 mm). Cross folding is possible from 182 mm to 500 mm, while perforation can be performed on sheets ranging from 105 mm to 500 mm in width. Performance highlights: Folding capacity: 2 parallel folds + 1 cross fold Sheet width: 105 – 500 mm Sheet length: 174 – 648 mm Cross folding: 182 – 500 mm Perforation width: 105 – 500 mm Speed: up to 180 m/min Compact and efficient, the Horizon AFC-502 is well-suited for printshops requiring reliable folding performance across a variety of formats.

More Details
Status : In Printshop
Location : Germany
Incoterm: FCA
Description:

• 4-buckles cross folder
• Parallel fold
• Crossfold
• Technology: touch & work
• Memory folding types:
• 17 standard-typs of fold preprogrammed
• - Saveable jobs: 200 memories for repeat orders
• 1.folding unit: 4 buckles + knife
• 2.folding unit: 2 buckles
• Knife: full automatic
• Sheet size:max. 540x760mm; min. 120x172mm
• - Fold length:1. buckle: min. 58mm all other buckles: min. 35mm
• Paper weight: 40-250g/sqm
• Pile height: 650mm
• Speed: max. 40.000 cycles/h
• Power: 400V/50Hz - 2,5kW
• Dimensions: 2.700x1.050x1.650mm
• Weight: 1.050kg
• (without conveyor)

Product description:
The Horizon AFC-544 AKT is a versatile cross folder currently in operation at a printshop in Germany. Designed for sheet sizes up to 540 x 760 mm (minimum 120 x 172 mm), it combines efficiency with flexibility for a wide range of folding applications. The machine features 4 buckles with knife in the first folding unit and 2 buckles in the second unit, supported by a fully automatic knife for precise folding. Equipped with “touch & work” technology, it offers intuitive operation and includes 17 standard folding types preprogrammed, along with memory capacity for 200 repeat jobs. Capable of handling paper weights from 40 to 250 g/m², it delivers a maximum speed of 40,000 cycles per hour. Additional specifications include: Fold length: minimum 58 mm (1st buckle), 35 mm (other buckles) Pile height: 650 mm Power: 400V / 50Hz – 2.5 kW Dimensions: 2,700 x 1,050 x 1,650 mm Weight: 1,050 kg (without conveyor) This machine offers a compact, high-performance solution for professional folding needs, combining automation, memory functions, and robust engineering.

More Details
Status : In production
Location : Germany
Incoterm: FCA
Description:

• Feeder:
• Feeder Mode: Palet feeder
• Type: PFH-66
• Control Unit: MCT control panel
• Air Stream Table
• Folding Units: 1st unit
• Type: BCUH-66
• Year: 2009
• Pockets: 4x
• Pocket Type: Combi folding plates
• Pocket Configuration: manual setting
• Rollers Configuration: manual setting
• Roller condition: used condition
• Cross fold unit with 2x knives
• Second Knife aligned to: Left & right
• Noise Protection Hood
• Monitor Screen
• Delivery:
• Delivery mode: Horizontal stack press delivery
• Type: SBP-M 46.D
• Technical Details:
• Sheet size max: 660 x 1,040 mm
• Pallet feeder max capacity: 800 mm height
• Sheet size min: 140 x 180 mm
• Max. mechanical speed: 200 / 230 m/min

More Details
Total runtime : 320528 Hours
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• 1 clamp
• Cover feeder
• Cover weight: 90 - 300g/qm
• Cover: max: 660 x 320mm
• Cover: min: 240 x 135mm
• DV/270 Hi pile delivery conveyor
• Format: max: 320 x 320 m
• Format: min: 148 x105 mm

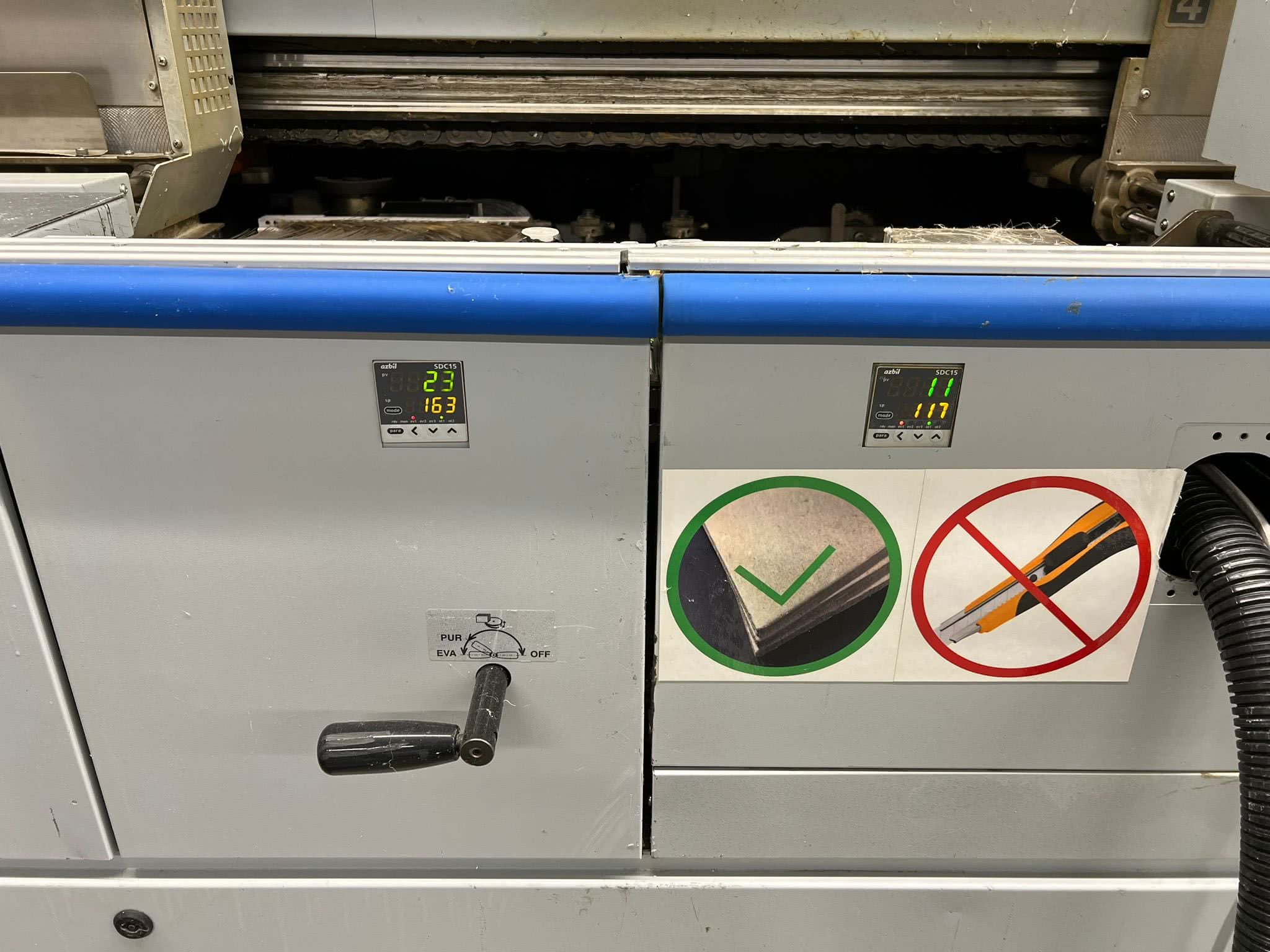

• Glue: hotmelt 120-180°C
• Hotmelt
• Milling section
• milling section; milling depth adjustable
• Save up to 20 Jobs

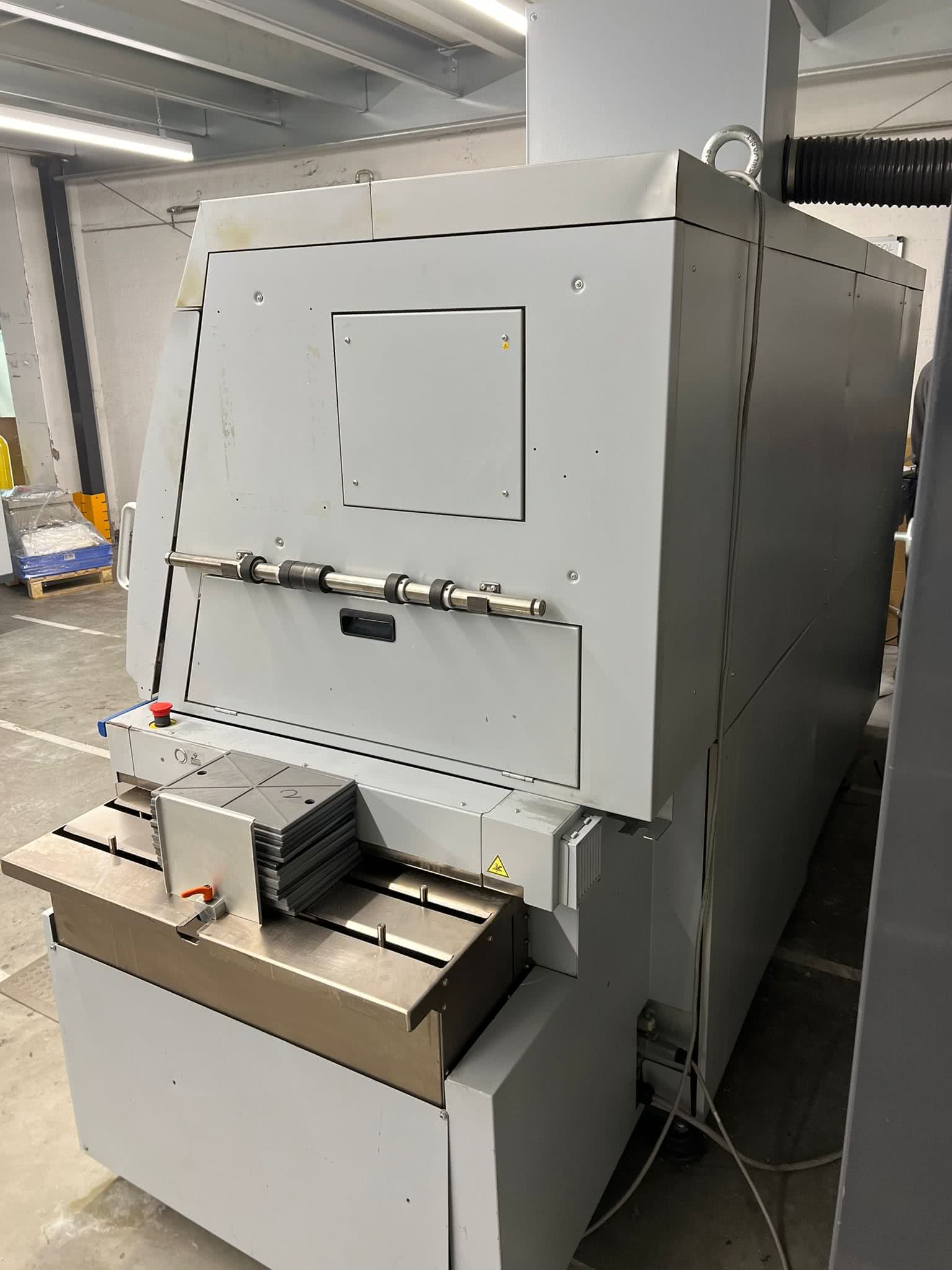

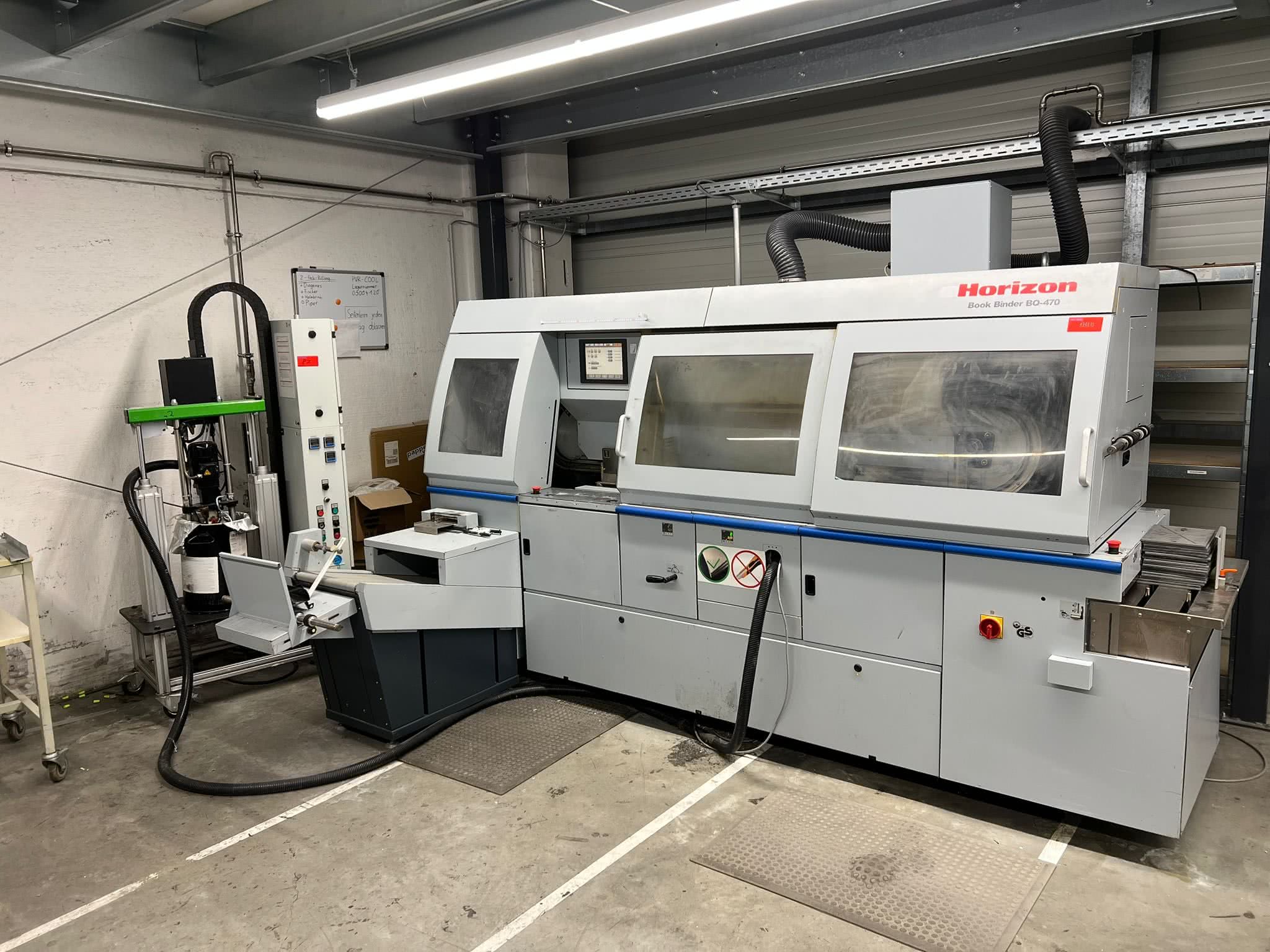

• Single-clamp binder
• Suction cover feeder

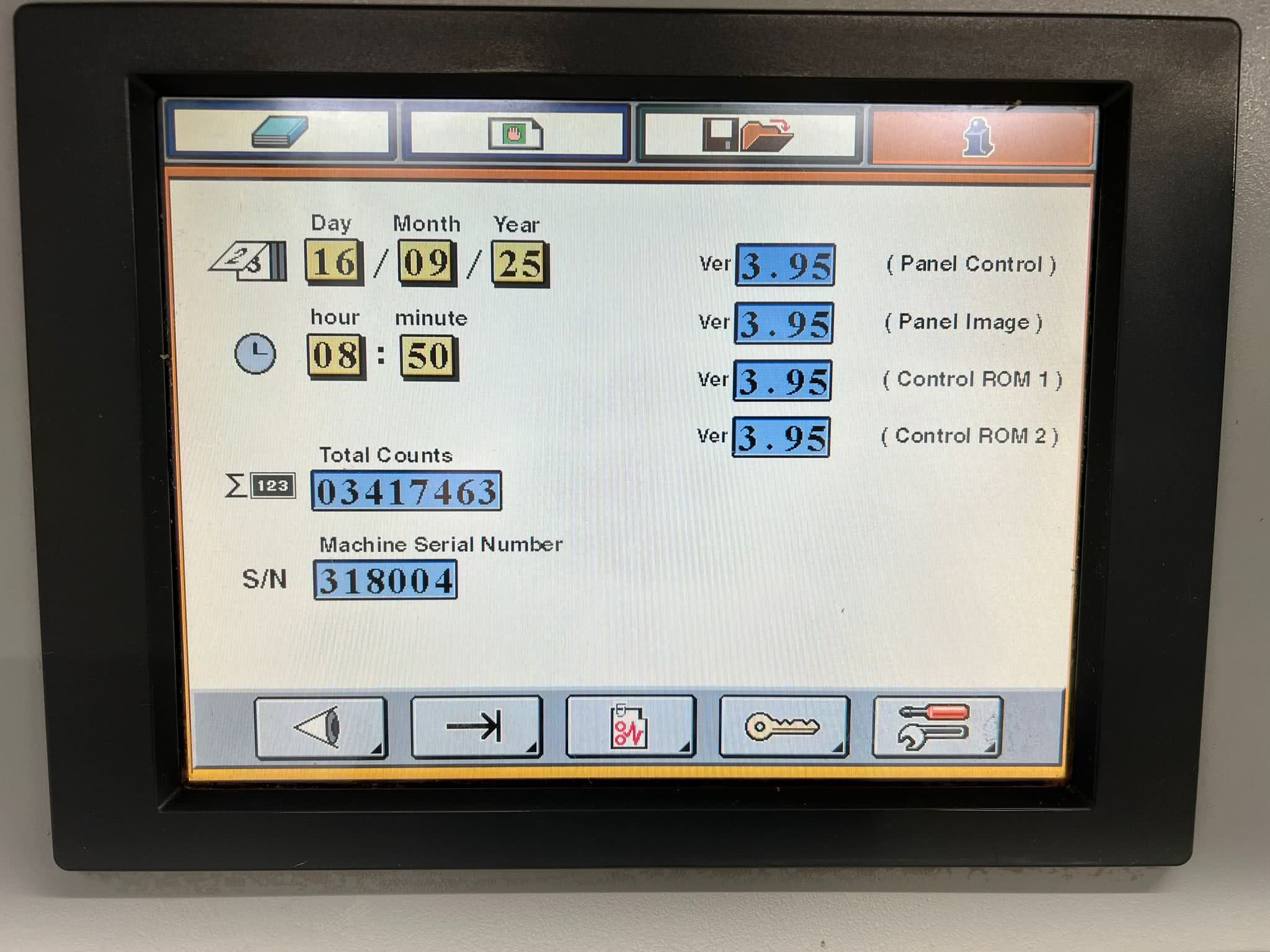

• Touch & work technology
• Book thickness: 1 to

More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• Format: max: 318x470mm, min: 148x210mm
• missfeeding-, doublefeeding and jamming control
• integrated jugger
• bin pile height: 10cm
• paper weight: 23-210g/qm
• pile height: 10cm/bin
• capacity: up to 2400 cycles/hour
• dimension: 165x65x207cm
• weight: 510kg
• power: 3-phase 400 Volt
• Suction Air (Vacuum Feed)
• Air Blower
• With vaacum compressor

More Details
Status : In production
Location : Germany
Incoterm: FCA
Description:

• This StitchLiner 5500 includes the following components
• 2x VAC-100a and VAC-100m Collating Towers
• ST-40 Stacker
• ACF-30 Accumulator and Folder
• SPF-30 Saddle Stitcher
• HTS-30 Three-Knife Trimmer
• TB-30 Transport Belt
• Key Features:- 20 stations- U-shaped layout: Efficient space utilization and easy monitoring- Inline production from collating to finished product- Variable data processing: Handles personalized p
• printing- Fully automatic format adjustment for quick job changes- Touchscreen for user-friendly operation, even for less experienced operators
• Specifications:- Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm- Paper weight: 40-350 gsm- Processing thickness: 8-200 pages (max. 5 mm spine thickness)- Production speed: Up to 5,500 booklets/
• Technical Details:- Trimming (untrimmed): Max. 350 x 250 mm, Min. 140 x 103 mm- Trimming (trimmed): Max. 312 x 230 mm, Min. 120 x 95 mm- Power supply: 400V / 50Hz- Space requirement: Min. 5,709 x

Product description:
The Horizon StitchLiner 5500, manufactured by Horizon in 2007, is a machine with a format of 350 x 500 mm currently in production and located in Germany. This machine includes two VAC-100a and VAC-100m collating towers, an ST-40 stacker, an ACF-30 accumulator and folder, an SPF-30 saddle stitcher, an HTS-30 three-knife trimmer, and a TB-30 transport belt. Key features include 20 stations, a U-shaped layout for efficient space utilization and easy monitoring, inline production from collating to the finished product, and variable data processing for personalized printing. It offers fully automatic format adjustment for quick job changes and a touchscreen for user-friendly operation, even for less experienced operators. The specifications include handling sheet sizes from a maximum of 500 x 350 mm to a minimum of 148 x 120 mm, with a paper weight range of 40-350 gsm. It can process thicknesses from 8 to 200 pages, with a maximum spine thickness of 5 mm, and achieves a production speed of up to 5,500 booklets per hour. Technical details include a trimming size (untrimmed) from a maximum of 350 x 250 mm to a minimum of 140 x 103 mm, and a trimming size (trimmed) from a maximum of 312 x 230 mm to a minimum of 120 x 95 mm. The machine requires a power supply of 400V/50Hz. The delivery terms are FCA.

More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• Mechanical speed: 250 pieces/hour
• Blank Sheet Width: Minimum 250 mm to Maximum 770 mm
• Blank Sheet Height: Minimum 150 mm to Maximum 400 mm
• Allowable Board Thickness: From 1.5 mm up to 3.5 mm thick rigid greyboard
• Cutting Width (Horizontal): Adjustable from a narrow minimum of 6 mm (perfect for thin hardcover book spines) up to a maximum width of 700 mm.
• Cutting Height (Vertical): Adjustable from 127 mm up to 355 mm.
• Automatic 3-Panel Segmenting
• Automated Material Lift & Feed
• Integrated Sheet Transport Conveyor
• Heavy-Duty Rotary Shear Knife Block
• Digital Operator Display Panel
• Maximum Sheet Feed Capacity: Accommodates a raw board thickness range commonly spanning 1.0 mm up to 4.0 mm

More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• Accumulate & Folder ACF-30 (serial 381007)
• Stacker ST-40 (serial 409107)
• 4x Collator VAC-600Ha
• Three knife trimmer HTS-30S (serial 632003)
• Saddle stitcher SPF-30S (serial 632003)

More Details
Status : Stock
Location : Germany
Incoterm: FCA
Description:

• Mechanical speed: 250 pieces/hour
• Rotating Doctor Blade System
• Integrated Viskositätsoptimierung (AVC)
• Programmable Pre-Heat Timer
• Top-Side Sheet Transport Control
• Maximum Working Width: 53.0 cm (530 mm / ~20.8 inches). It easily takes oversized SRA3 digital sheets or long banner covers fed horizontally.
• Substrate Capabilities: Optimized for delicate digitally printed sheets, high-gloss laminations, heavy textured cover stocks, and woven book cloths.

More Details
Status : In production
Location : Germany
Incoterm: FCA
Description:

• details on Request
