- Reference No.: 41614
- Manufacturer: Horizon
- Type: Stichliner 5500
- Year: 2012
- Size: 500 x 350 mm
- Impression: 11165626 Mio.
- Status: Stock
Location: Germany
Price: on request - Incoterm: FCA
- Description

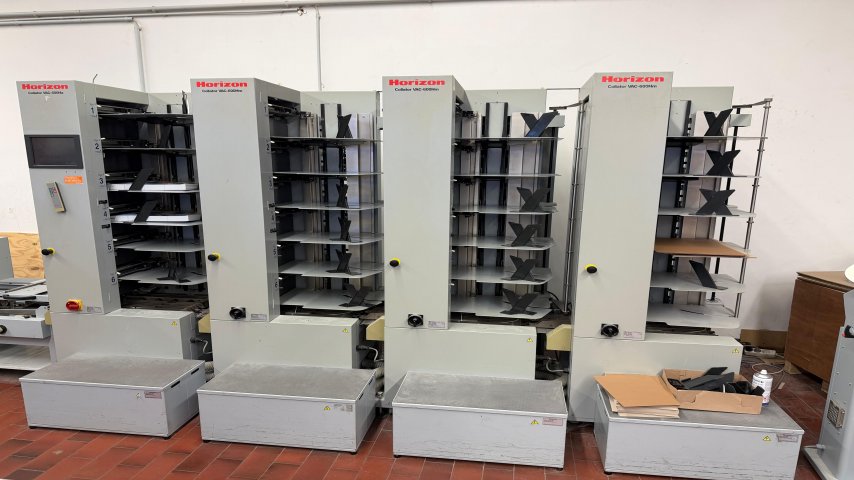

- Accumulate & Folder ACF-30

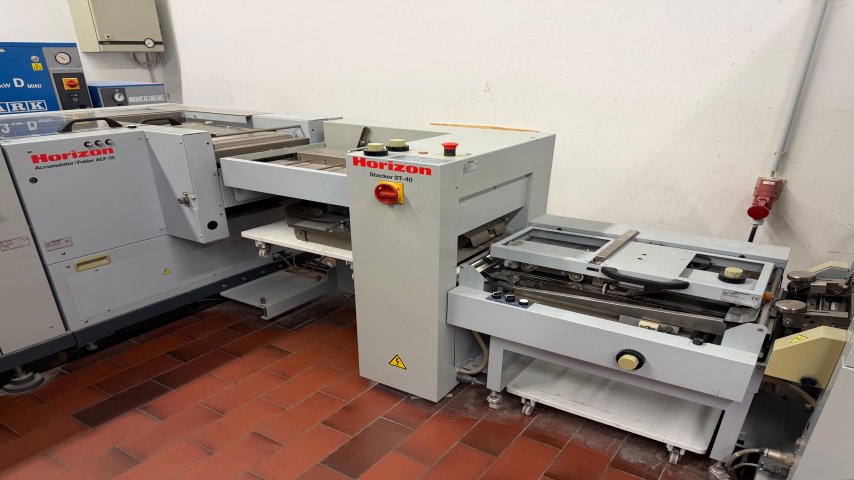

- Stacker ST-40
- 1x VAC-600 Ha 3x VAC-600 Hm
- Three knife trimmer HTS-30S
- Saddle stitcher SPF-30S
- 24 stations
- U-shaped layout: Efficient space utilization and easy monitoring
- Inline production from collating to finished product
- Variable data processing: Handles personalized prints and variable page counts, ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen for user-friendly operation, even for less experienced operators
- Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm
- Paper weight: 40-350 gsm
- Processing thickness: 8-200 pages (max. 5 mm spine thickness)
- Production speed: Up to 5,500 booklets/hour
- Stitch distance: 60-150 mm
- Trimming (untrimmed): Max. 350 x 250 mm, Min. 140 x 103 mm
- Trimming (trimmed): Max. 312 x 230 mm, Min. 120 x 95 mm
- Power supply: 400V / 50Hz
- Space requirement: Min. 5,709 x 3,240 mm
|
|
